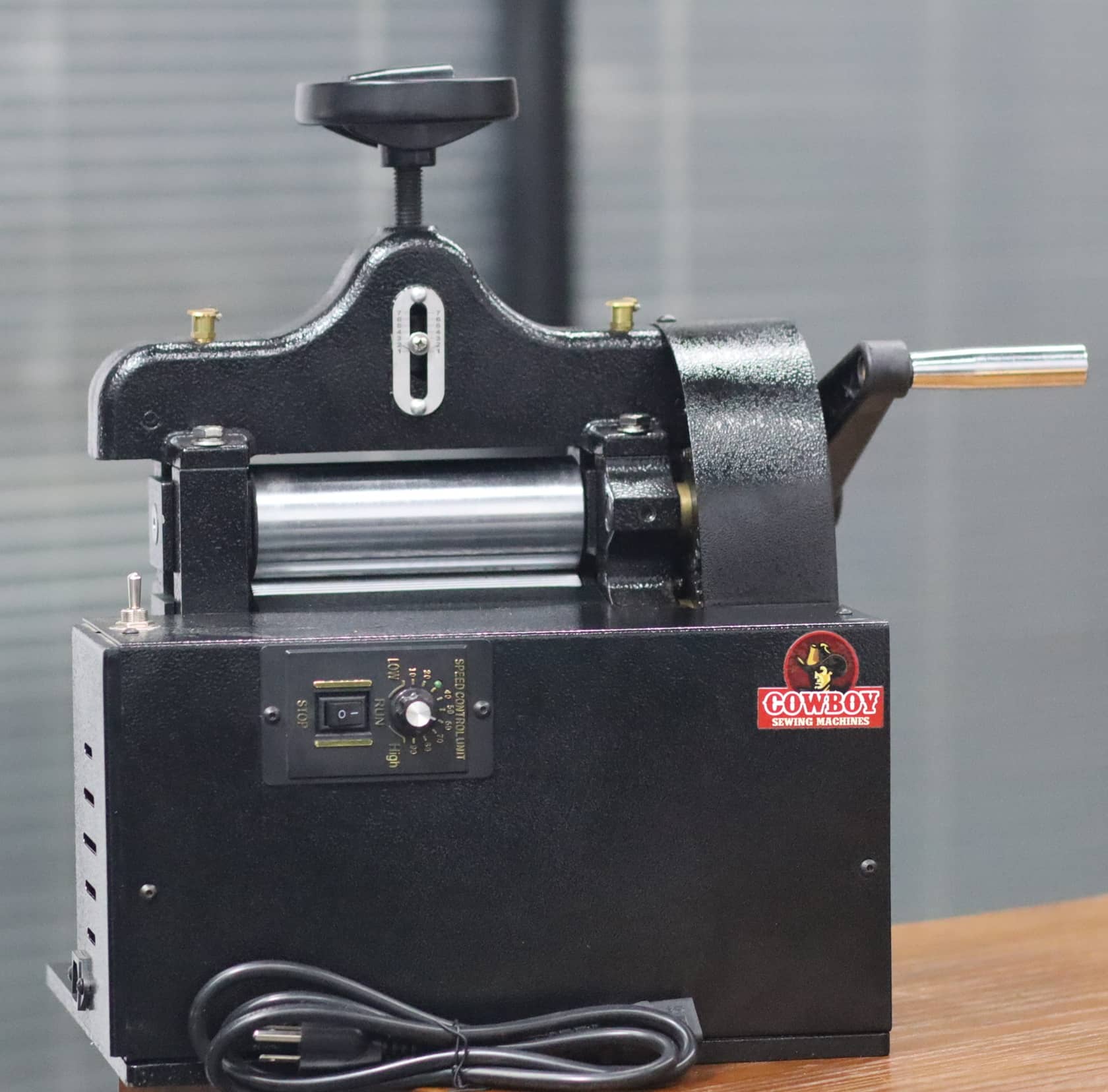

8116PRO Heavy Duty Motorized Leather Splitter

heavy duty vegetable tanned leather splitting

8116PRO Heavy Duty Motorized Leather Splitter thumbnail

Heavy duty leather splitting machine thumbnail

heavy duty vegetable tanned leather splitting thumbnail

motorized leather splitting machine thumbnail

8116PRO Heavy Duty Motorized Leather Splitter Machine | Engineered for Splitting Vegetable-tanned Leather

Video on YouTube

Call us at: +86 13815324876 for more information, or to order

Description +

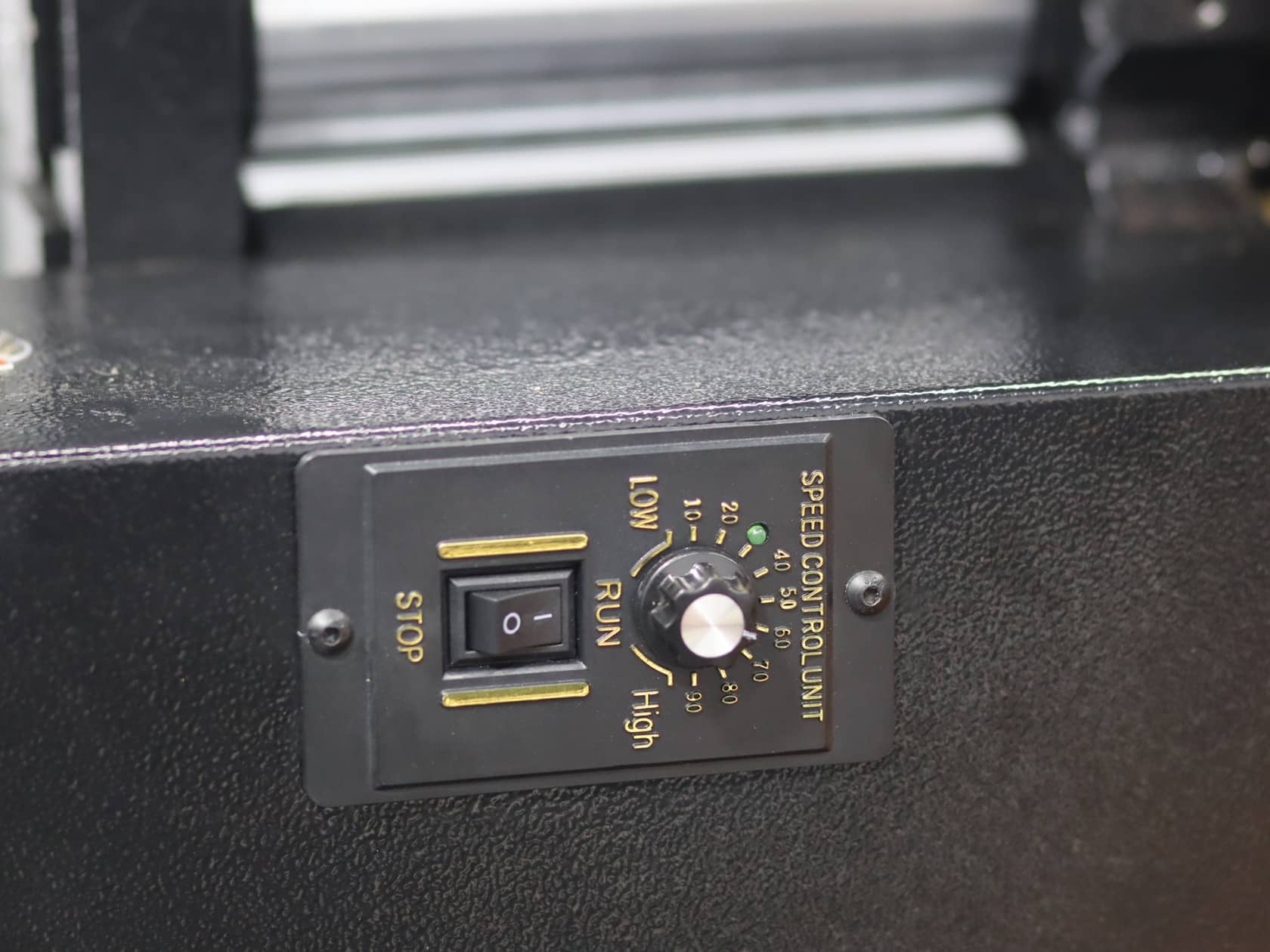

1. Variable Speed Motor Drive: It is equipped with a speed-adjustable electric motor (which includes a reverse function). This allows you to precisely accelerate or decelerate how fast you feed material through the machine, giving you optimal control over different types of projects.
2. Dual Operation Flexibility: The 8116PRO is highly versatile and can be operated via the motorized drive or switched back to a hand crank depending on your preference and need for precision.

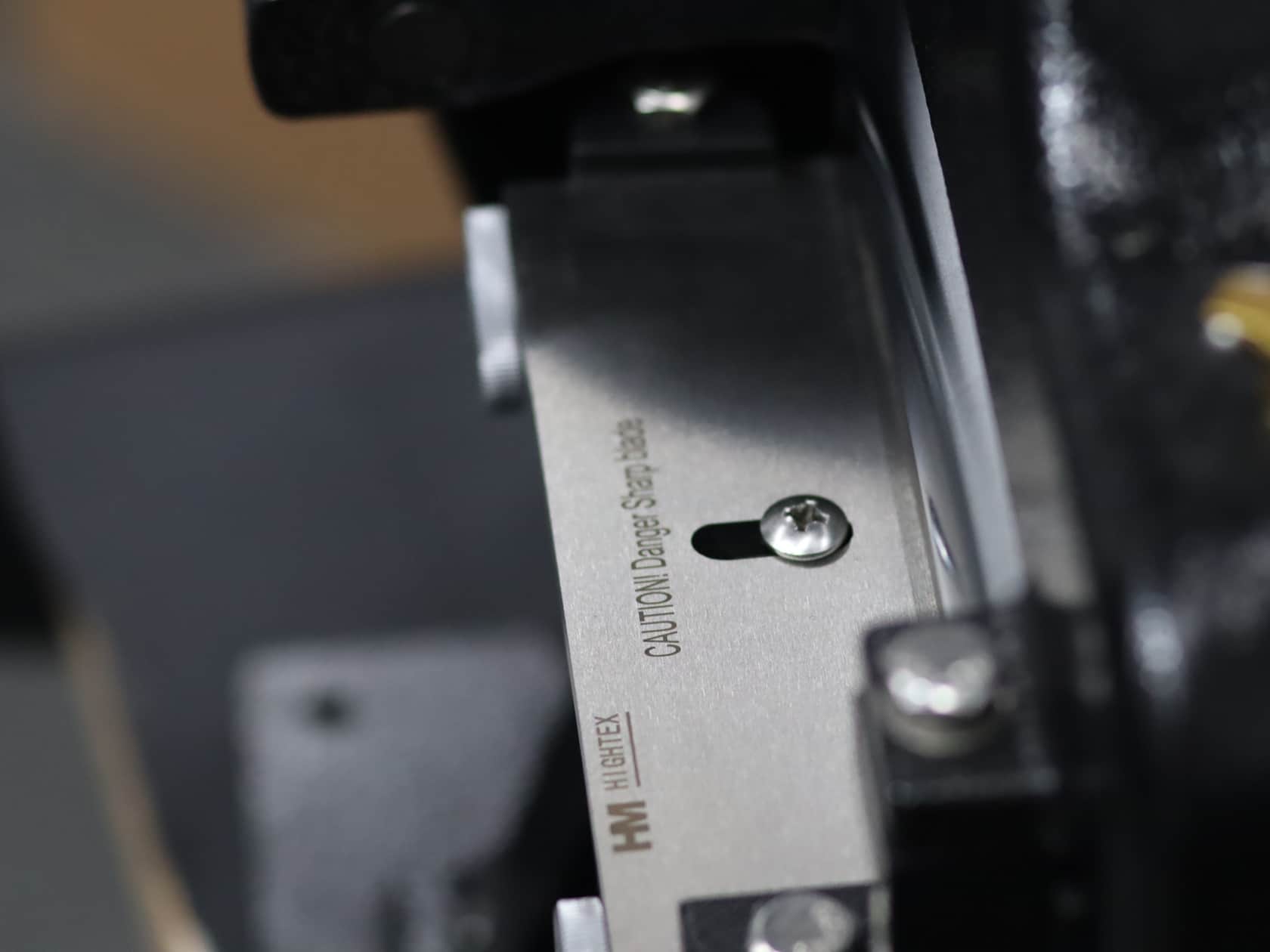

3. High Wear-Resistant D2 Steel Blade: The motorized version is built with a premium D-2 steel blade, which boasts extremely high wear and abrasion resistance to withstand continuous, powered splitting.
4. Massive Material Leverage: Thanks to its gear-driven bottom feeder and a highly adjustable thickness lever, the machine easily processes thick, tough materials ranging from 3 oz. to 14 oz.. It handles vegetable-tanned leather, heavy hides, belts, shoe soles, rubber, and crepe with minimal effort.
5. Portable Workbench Design: Despite having an integrated motor system, it retains a compact, bench-mounted design using 4 pre-drilled screw holes to securely anchor to any standard workshop workbench.

Specifications +

Length of blade:150mm
Optimal splitting width: 10-100mm
Minimum skiving thicknes:1mm
Leather type:Vegetable Tanned Leather and Veg Tan Hides (NOT for soft upholstery leather)
Packing size:400x350x485mm, G.W: 49 KGS

Product Information +

The primary advantage of the 8116PRO motorized leather splitter is its motorized upgrade to the standard, hand-cranked 8116 model, which drastically increases production efficiency while eliminating operator fatigue. Engineered specifically for vegetable-tanned leather, it is the perfect tool for crafting heavy items like saddles, belts, knife sheaths, and holsters.
This versatile machine offers dual-operation flexibility, allowing users to switch between manual hand-crank and motorized control. The powered configuration features a variable-speed electric motor paired with a premium D2 steel blade for exceptional wear and abrasion resistance.
