204-370DP Heavy Duty Post Bed Twin Needle Sewing Machine | Triple Feed Walking Foot Industrial Upholstery Sewing Machine for Thick Thread Decorative Stitching

Video on YouTube

Call us at: +86 13815324876 for more information, or to order

Description +

1. Optimization for Ultra-Thick Decorative Thread

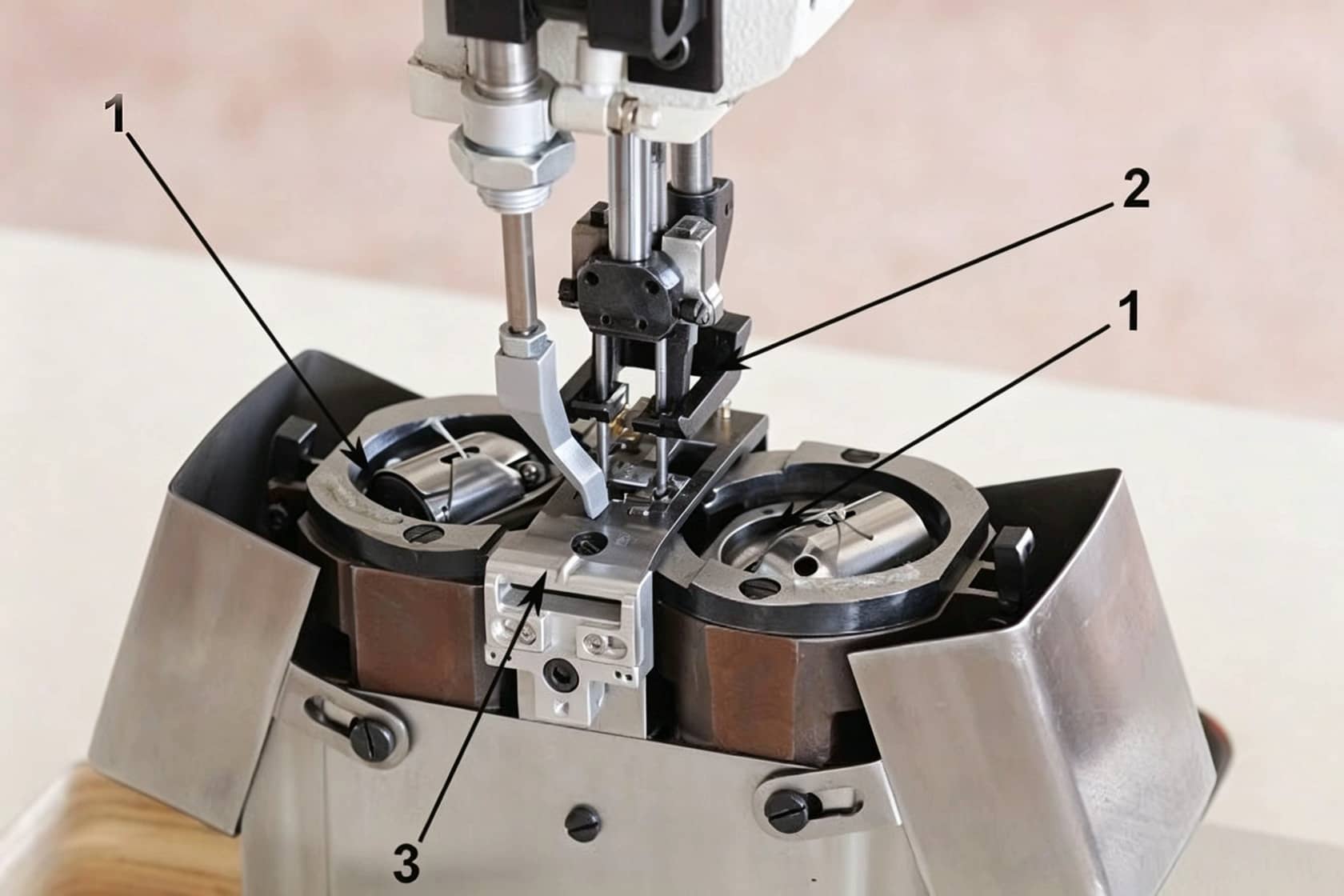

Adler 204 Type Large Barrel Shuttle: It features dual extra-large barrel shuttle hooks specifically designed to handle extreme thread capacities and thicknesses.
Heavy Thread Capacity: It effortlessly accommodates ultra-thick braided and metric threads, including metric sizes up to 7, V415, T-400, 1300dx3, and Amann Serabraid 1400 T60.
Long Sewing Cycles: The large bobbin capacity reduces the frequency of bobbin changes, dramatically enhancing workshop productivity during extensive topstitching runs.

2. Specialized Post-Bed Design

Three-Dimensional Maneuverability: Unlike standard flatbed machines, the post-bed configuration provides superior clearance, access, and control.
Complex Geometry Handling: This is essential for navigating functional or decorative stitching on pre-shaped, 3D, or tubular items like car seat covers, sofas, armchairs, and luxury leather bags.

3. Superior Feeding and Climbing Power

Triple Feed Mechanism: Utilizing a synchronized system of a feed dog, needle feed, and walking foot top feed, the machine guarantees a completely constant stitch length without material slippage.
Exceptional Material Penetration: High needle penetration power ensures the machine pierces multi-layered thick spots or cross seams without skipping stitches.

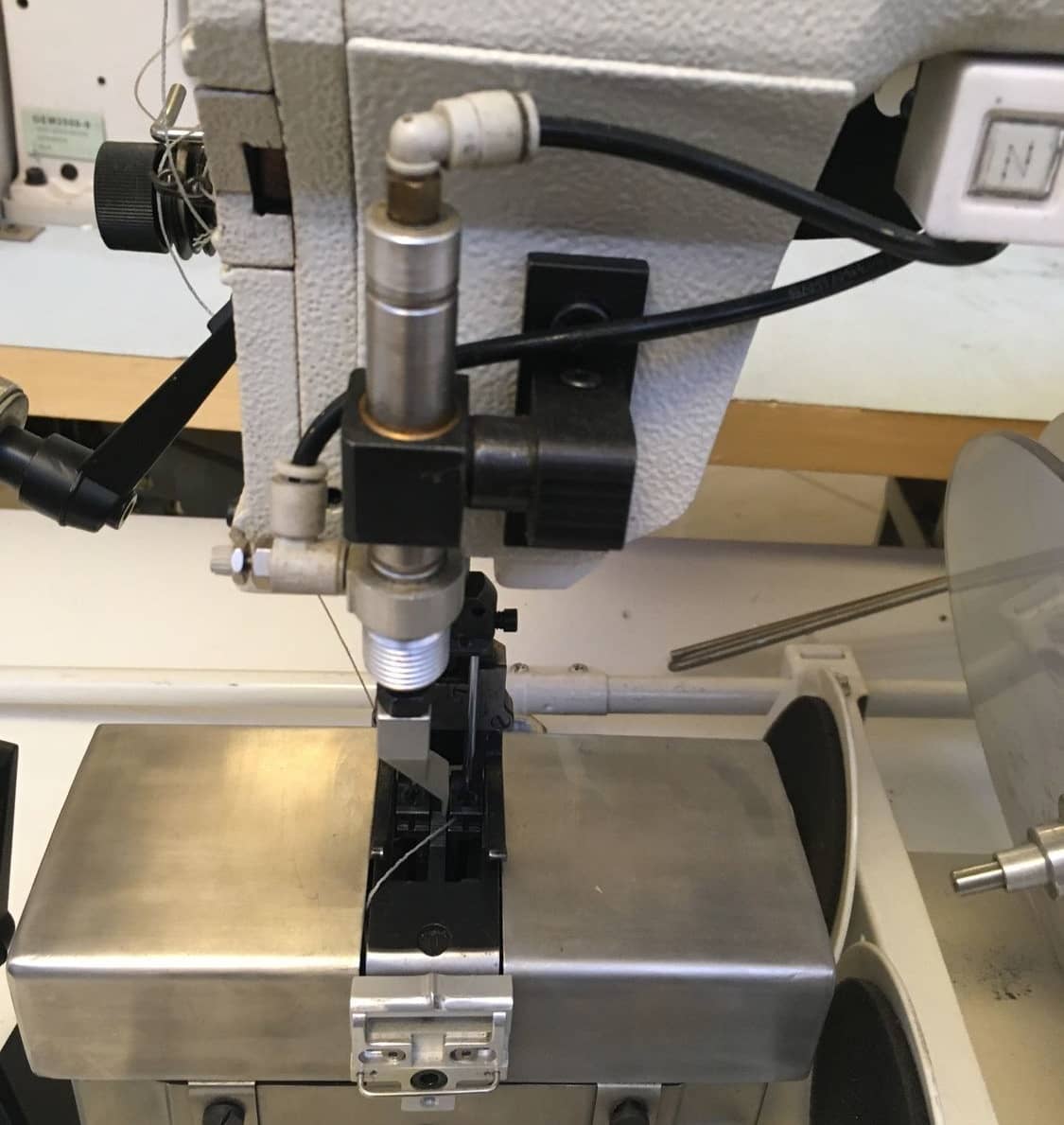

10mm Foot Stroke: The sewing foot stroke transitions up to 10 mm, allowing it to safely "climb" over uneven material plies and overlapping transversal seams without stalling.

4. Aesthetics & Production Capabilities

Twin-Needle Seams: It produces perfectly parallel, striking double-needle decorative seams that elevate the luxury aesthetic of sofas, marine interiors, and aerospace upholstery.
Long Stitch Lengths: It supports bold, highly visible decorative and assembly stitches up to 14 mm in length.

5. Premium & Benefit-Driven

Engineered specifically to meet the rigorous demands of luxury automotive seating, armchair, and sofa manufacturers, the HighTex 204-370DP delivers unmatched efficiency and flawless stitch quality. This high-performance post-bed machine streamlines complex upholstery workflows with automated functions and precision handling. The Premium Features Included:

Automatic Backtacking: Programmed securing stitches at the start and finish.

Pneumatic Center Seam Guide: Ensures precise line tracking along fabric edges.

Compensating Presser Foot: Maintains even material contact across multi-layered steps.

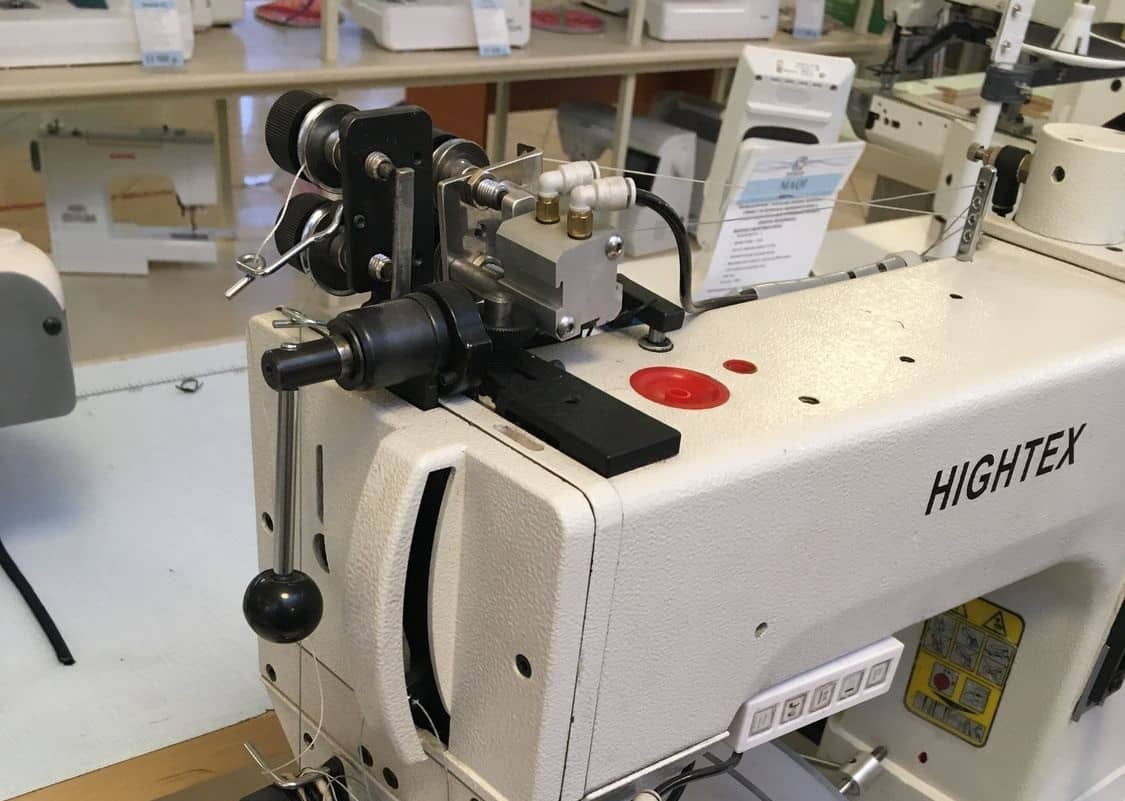

Cross-Seam Thread Tension: Additional tension control specifically for climbing over thick intersections.

Front Tape Guide & Bracket: Convenient tape-reel bracket for inline seam reinforcement.

Specifications +

Max. Speed: 500 spm
Max. Stitch Length:14mm
Needle gauge sets:Standard 10mm (8mm, 12mm, 14mm as options)
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
Height of post bed:140mm
Hook type: 204 Large Barrel Shuttle Hook
Feeding mechanism:triple feed
Presser foot alternating:10mm
Clearance room:320mm (L) x 340mm( H)
Packing size(assembly):1250x730x 1510 mm, G.W: 190KGS

Product Information +

This extra-heavy-duty, twin-needle, post-bed leather sewing machine is a consistent best-seller for topstitching leather sofas, couches, car seat covers, and similar upholstered furniture requiring thick thread decorative seams. The specialized post-bed design provides superior access and control when sewing decorative and functional stitches on shaped or 3D items, which are difficult or impossible to manage on a standard flatbed machine.Maximum metric thread sizes up to #7, V415, T-400, 1300dx3, or 1400 T60 braided thread can be used effortlessly. Its heavy-duty triple-feeding action—combining bottom feed, needle feed, and walking foot top feed—guarantees smooth handling of medium- to heavy-weight materials, leather, and fabrics. Additionally, a pneumatic climbing device ensures excellent stitch formation when sewing over thick spots or overlapping seams, delivering up to 14mm long stitches for both assembly and decorative seams.
